SPEAKER
CABLE
HIGH DEFINITION SPEAKER
CABLE
SPEAKER CABLE------FLAT
TYPE |
|
The woven flat speaker cables provide
maximum flexibility for installation under the carpet and palong door panel or base board
ideal use for home and car audio systems.
The woven construction resulting in low capacitance and attenuation for clean and
uncolored signal transsmition |
KS 10** |
series is fully OFC 2
parallel flat cable |
KS 14** |
series can be bi-wired for
high-end loudspeaker system |
KS 21** |
series is a combination of
OFC and SPC
for excellent performance and gorgeous outlook. |
KS 15** |
series is fully SPC. |
|
|
SPEAKER CABLE------OFC |
|
All this series
is designed the twisted conductors to lower the
inductance with each other. KS-1404R is biwireable.
Both KS-1224 & KS-1226 have the insulated "bass line
conductors" which are surrounded by some smaller
diameter conductors. |
SPEAKER CABLE------BRAIDED
TYPE |
|
The
series features multi-sized UPOCC copper conductors,
PE insulation, and negative and positive braided
with each other. This braided type speaker cables
not only can make the inductance as low as possible,
but can make the looking more beautiful and
flexible. NS-2830 is with SPC conductor and Teflon
insulation. NS-2415 is with pure silver conductor
and clear Teflon insulation. Besides, they are
biwireable.
|
SPEAKER CABLE------OCC PURE SILVER |
|
The state-of-art
conductor material! NS-02320 features multi-sized
solid conductors, individually insulated by PE, PE
hallow tubes and PTFE as reinforced insulation,
single-wireable, and bi-wireable. NS-02525 also
features multi--sized solid conductors, individually
insulated by PE but these conductors are braided.
This item can be single-wireable, bi-wireable, and
tri-wireable. Besides, the Cu-foil can shield the
exterior RF and EMI interference.
|
SPEAKER CABLE------OCC PURE
COPPER(1) |
|
All this series
features the single crystal UPOCC copper conductors.
NS-1952 is with solid conductors and individually
insulated by PP. NS-1456 is biwireable and with
braided tinned copper as shielding. NS-241260 is
coaxial type, and its braided conductors are
insulated by PTFE tape.
|

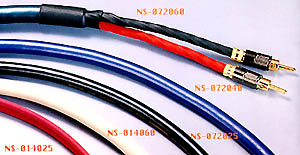

SPEAKER CABLE------OCC PURE COPPER(2) |
|
This series
features multi-sized UPOCC copper conductors, CL3
PVC insulation, non-contaminating PVC jacket,
multi-sized conductors, and biwireable. NS-072025
has 3 pairs of 18AWG conductors. NS-072040 has 4
pairs of 16AWG conductors. NS-072060 has 6 pairs of
16AWG conductors. NS-014025 is flat type biwired
designed speaker cable. NS-014060 is hybrid of OCC
solid conductor and SPC copper. It is also
biwireable. |
|
